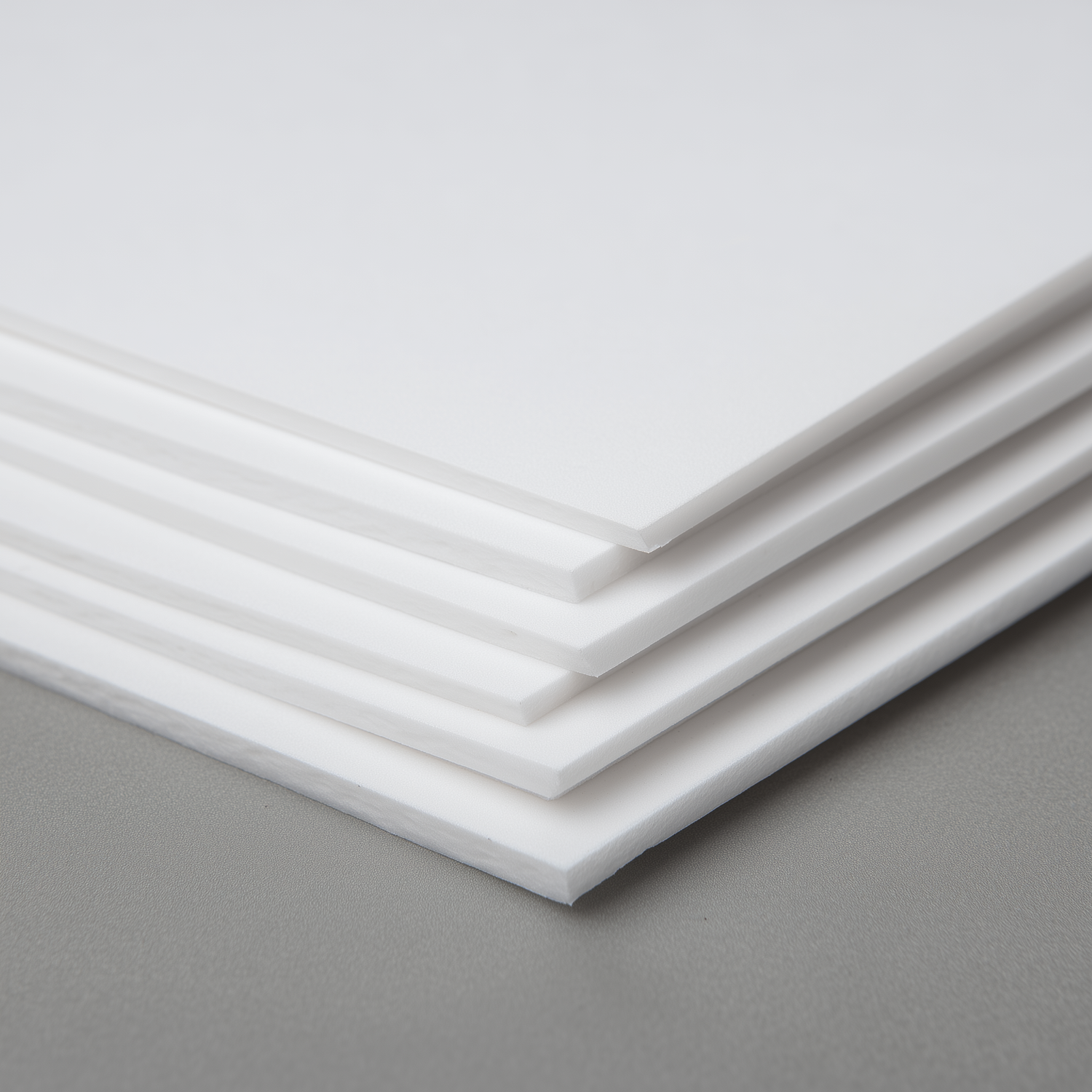

EPS Sheets and Blocks

Our company's architectural products are engineered as a fully integrated system composed of:

• EPS Core - 1.0-2.0 lb/ft³ density
• Polyurea Coating - two-component, 30-60 mils
• Adhesion Primer
• UV-Stable Finish Coat

This is not a sequence of separate layers. It is a closed engineered envelope where every component has a defined structural or protective role.

• Provides geometric form
• Maintains dimensional stability
• Reduces total weight

• Adds mechanical resistance
• Provides chemical inertness
• Blocks moisture intrusion

• Ensures bond integrity between materials

• Protects against UV exposure
• Stabilizes final appearance

WOOD

• Vulnerable to moisture and decay
• Requires constant maintenance
• Can structurally degrade in 3-7 years in harsh climates

• Dependent on rigid molds
• Limited to prefabricated shapes
• Custom designs become expensive

• Thermal expansion: 5-8 × 10⁻⁵/°C
• Can warp, open joints, and lose dimensional accuracy under temperature swings

• Extremely heavy
• Requires cranes and reinforced substrates
• Slower, more complex installation process

• CNC PRECISION: ±3 mm across any profile
• WEIGHT REDUCTION: 60-80% lighter than reinforced concrete
• FASTER INSTALLATION: no heavy lifting equipment required
• LOWER STRUCTURAL LOAD: reduced dead load on building envelope
• WIND RESISTANCE: 120-180 PSF
• CODE ENGINEERING: designed to Florida Building Code requirements
• PERMIT READY: substrate-specific anchorage by licensed engineer

Our company is not a decorative surface treatment.

It is a fully documented, engineered, permit-ready architectural system designed to move efficiently from fabrication to installation without rework.

Our company’s products are built on a composite material architecture that no single conventional material can replicate.

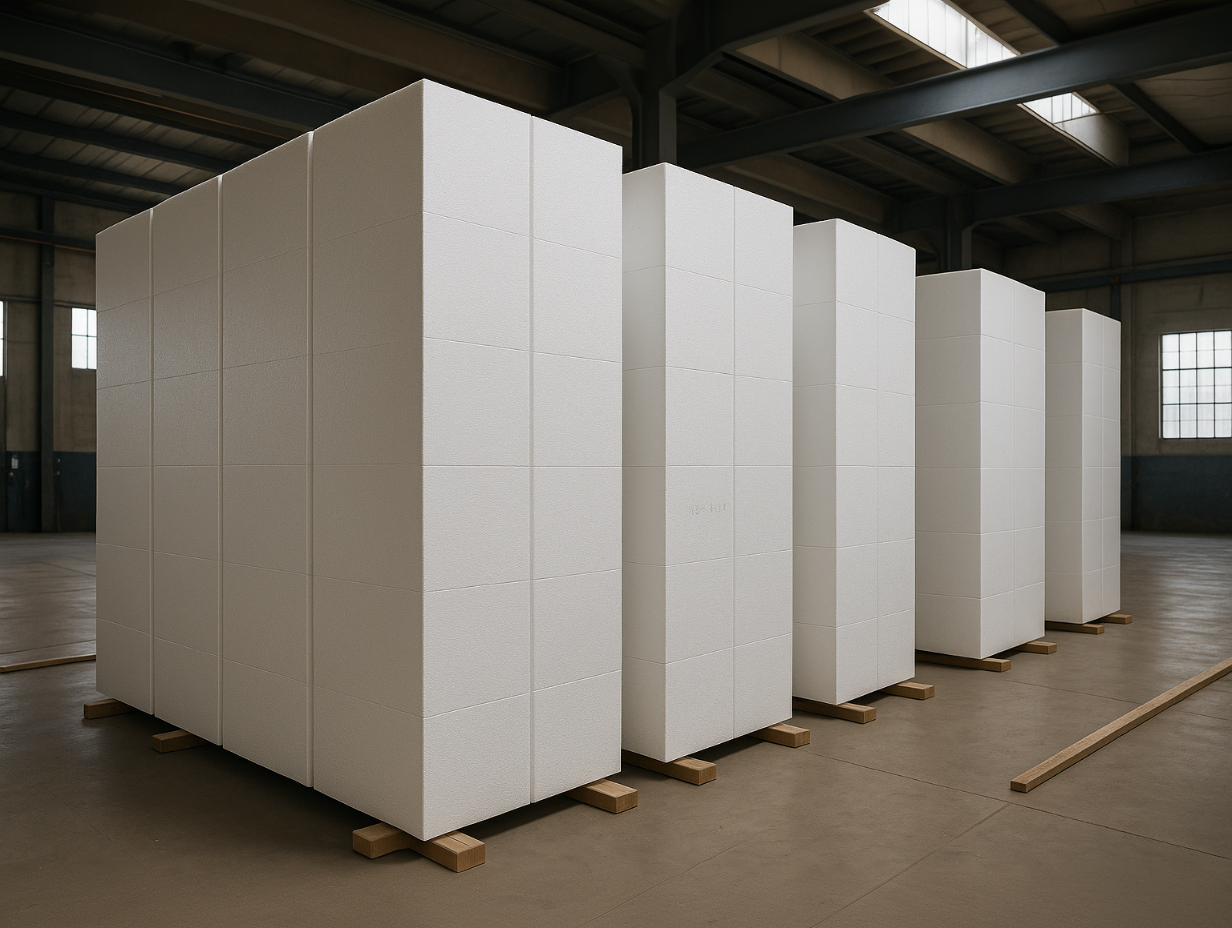

• EPS TYPE I - 1.0 lb/ft³ density
• EPS TYPE II - 2.0 lb/ft³ density
• Classified under ASTM C578
• Closed-cell EPS foam
• Water absorption: BELOW 2% per ASTM C272

This low absorption threshold is critical for facade elements exposed to:

• Wind-driven rain
• Condensation cycles
• Sustained humidity

Far exceeds conventional paints and gelcoats in durability and service resistance.

• 30-60 mil thickness applied
• 70-85 Shore D hardness
• High impact resistance
• High abrasion resistance
• Chemical inertness

• Hygroscopic by molecular structure
• Shrinks, warps, and separates under wet/dry cycles
• Vulnerable to fungi and insects
• Structural degradation in 3-10 years in warm humid climates

• Reduces variability
• Still moisture-sensitive
• Still biologically vulnerable

• Elastic modulus loses stiffness above elevated temperatures
• Creeps under self-weight and wind pressure
• UV causes embrittlement and pigment breakdown in 10-15 years

• Often lacks third-party certified data in custom fabrication
• Gelcoat damage allows hidden water intrusion
• Internal delamination may remain invisible until failure

Our company EPS + Polyurea removes all common substrate failures:

• No cellulosic substrate to rot
• No metal component to corrode
• No thermoplastic matrix to creep
• No laminate interface to delaminate

15-25+ years

10-15 years

Topcoat refinishing only.

ASTM-traceable performance data.

Based on documented standards, not marketing claims.

Our company is a measurable, testable, engineered exterior product system designed for long-term architectural performance.

The visual authority of an architectural product is not a subjective attribute - it is a direct function of measurable geometric precision.

Profile relief depth of 25-150 mm generates shadow lines that establish legible architectural form at distances of 20-50 meters.

Symmetry held to ±3 mm, achieved through CNC milling, eliminates the bilateral distortions inherent in hand-carved wood or hand-laid fiberglass.

Products projection geometry - the proportional system that defines classical and contemporary architectural orders - reads as a quality signal to specifiers, occupants, and the broader market.

These are engineering parameters, and Our company products are manufactured to deliver them consistently across every unit produced.

Conventional materials cannot achieve this level of geometric control in service.

Extruded PVC profiles are constrained to planar cross-sections: three-dimensional transitions, multi-axis relief, and compound curves are physically inaccessible to the extrusion process.

Standard fiberglass in open-mold production exhibits surface irregularities - exposed glass fibers, resin-rich zones, and porosity - that are visually apparent at close inspection and degrade the premium quality signal.

Wood surfaces crack at the interface between growth rings as moisture content cycles seasonally; within the first year of outdoor exposure in a warm climate, sharp profile edges at elements begin to open, compromising the geometric integrity the architect designed into the project.

The EPS core does not absorb moisture, does not swell or shrink, and does not respond to thermal cycling with dimensional change.

The polyurea shell does not crack, peel, or delaminate under normal service loads.

The resulting surface - smooth, dimensionally stable, and uniform in reflectance - performs equally well under direct daylight, at night under architectural uplighting, and in professional photography.

Clients and end-users receive a facade element with a measurable contribution to property value: documented curb appeal, photogenic quality, and architectural identity that directly support occupancy rates, sale price premiums, and brand differentiation for the developer.

Warm, coastal, and high-humidity climates present a compound durability challenge for exterior architectural products: wind-driven rain, sustained UV exposure, biological growth, salt-laden air, and diurnal thermal cycling all operate simultaneously and without interruption for the full service life of the installation.

Any material selection that addresses only one or two of these mechanisms while remaining vulnerable to the others will produce premature failure.

Our company EPS/polyurea products are engineered to resist all active degradation mechanisms in parallel, not in sequence.

The polyurea coating at 30-60 mils functions as a continuous elastomeric barrier - no seams, no capillary channels, no porous zones through which moisture can migrate to the EPS core.

With Shore D hardness of 40-70, it resists pedestrian-level mechanical impacts (tool contact, equipment brushing, incidental loading) at a level unachievable with conventional latex paint or fiberglass gelcoat.

The EPS core is chemically inert: it does not provide a metabolizable carbon source for fungal or bacterial colonization, does not react with moisture, and does not contain ferrous components capable of corrosion.

When joints and terminations are properly detailed and sealed, the assembled system delivers high moisture resistance performance even under sustained wind-driven rain exposure.

Wood demands repainting every 3-5 years, chemical treatment against insect attack, and annual inspection for decay - cumulative 20-year maintenance expenditure routinely exceeds original installed cost.

PVC embrittles and discolors under UV in 7-10 years; thermal expansion mismatches at joints create pathways for water infiltration.

Fiberglass delaminates internally when the protective gelcoat is breached, a failure mode that is undetectable without non-destructive testing until visible surface collapse occurs.

Clients who specify our company products receive a warranted system service life of 15-25+ years, a predictable maintenance cycle of topcoat refinishing every 5-10 years, and resistance to biological, mechanical, UV, and moisture degradation that does not require the owner to manage multiple separate protection programs.

A rejection from the Authority Having Jurisdiction (AHJ), a request for additional engineering data from the HOA, or a code-compliance question from the plan reviewer can delay a project by weeks, trigger contract penalty clauses, and require the design team to produce documentation under time pressure.

Selecting a material system with a complete, pre-existing compliance package is a direct risk mitigation strategy for the owner, developer, and general contractor.

ASTM C578classifies EPS foam by type and provides numerical values for density, compressive resistance, flexural strength, and thermal conductivity - the language of structural engineers and code reviewers.

ASTM C272quantifies water absorption of cellular plastic insulation, providing the test data required for moisture-related code provisions.

ASTM E84establishes surface burning characteristics for flame spread and smoke development, essential for commercial occupancies and interior code compliance.

The Florida Building Code wind load requirements of 120-180 PSF (depending on exposure category and geographic location) are addressed through engineered anchorage design produced by a licensed professional engineer - not generic installation guidelines.

This stands in direct contrast to unstandardized wood assemblies, which have no unified certification system for decorative architectural elements, and to custom fiberglass products that frequently lack third-party material certification entirely.

• Shop drawings with anchorage details
• Material specifications with ASTM references
• Engineering calculations for wind load resistance
• Safety data sheets for all coating components

Everything an AHJ, HOA, or municipal permitting office requires in a single submission.

Clients receive a product that passes code review on the first submission, eliminating the cost of re-engineering, resubmission fees, schedule delays, and legal exposure associated with non-compliant installations.

The economic case for any architectural material system cannot be made on unit purchase price alone.

The total cost of ownership (TCO) integrates:

• Procurement
• Installation labor
• Equipment rental
• Freight handling
• Routine maintenance
• Unplanned repair
• End-of-life replacement

This applies over the full service life - a horizon of 15-25 years for exterior facade elements.

On this complete accounting basis, our company’s EPS/polyurea products consistently outperform every competing material category, including wood, PVC, fiberglass, and precast concrete.

Installation economics are driven by weight.

At 60-80% less mass than reinforced concrete and natural stone, our company products require:

• No crane equipment
• No reinforced substructure
• No extended cure periods

A crew of 2-4 workers installs a typical product set in 4-8 hours, compared with multi-day schedules for masonry piers, precast element assemblies, or cast-in-place concrete.

Freight economics follow directly: a given truck load carries significantly more EPS product by volume and by count than any masonry or stone alternative, reducing per-unit delivered cost.

CNC fabrication eliminates hand-finishing labor inherent to wood and stone production and produces consistent output with a near-zero defect rate:

• No rework
• No field modification
• No waste from material variability

Custom geometry economics are fundamentally different for EPS/polyurea versus competing systems.

Fiberglass custom profiles require fabrication of molds and counter-molds at $2,000-$15,000 per profile, with lead times of 3-8 weeks.

PVC custom extrusion dies carry comparable tooling costs.

Wood custom millwork requires specialized equipment, skilled labor, and extended production time.

With our company, any geometry is milled directly from a digital model at no tooling premium - a single profile or a full production run carries the same per-unit fabrication cost structure.

Long-term maintenance includes major advantages:

• No rot means no chemical treatment programs
• No pest control contracts
• No emergency replacement of decayed elements
• Topcoat refinishing every 5-10 years is the only planned maintenance expenditure
• Individual damaged components can be replaced in isolation without disturbing adjacent elements

On a 20-year TCO basis, our company delivers the lowest total cost of any equivalent architectural product category.

Every day of accelerated project delivery reduces financing carrying costs, advances the revenue start date for the completed asset, and reduces general conditions expenditure - site supervision, temporary facilities, and overhead.

Facade element installation is frequently a schedule-critical activity: it gates exterior envelope closure, painting, and final inspections.

The material system selected for architectural products therefore has a direct and quantifiable impact on project economics, not just on installed appearance.

There is no formwork to build, no concrete to pour, no cure period to observe, no wet-trade sequencing to coordinate.

Fast-cure polyurea coating systems reduce factory finishing cycle time to hours per production run - a throughput rate that fiberglass laminating and wood finishing operations cannot match.

A typical installation of a complete product set requires a crew of 2-4 workers and 4-8 hours of on-site labor, versus multi-day or multi-week schedules for masonry piers, precast assemblies, or site-built wood elements.

The dry-installation method eliminates weather-dependent cure windows that routinely extend wet-trade schedules in high-humidity and rain-prone environments.

Custom profile geometry is produced by modifying a digital model and initiating a milling run - a process measured in hours, not the weeks required to fabricate new fiberglass molds or commission custom extrusion tooling.

When design changes occur late in the project timeline, Our Company can respond without a schedule penalty.

Prefabrication also reduces site congestion: fewer trades, less equipment, and a compressed installation window mean that other parallel activities on the critical path are not disrupted.

Clients receive a measurable construction schedule advantage, a documented reduction in general conditions cost during facade installation, and earlier building turnover - all direct contributions to project-level return on investment.

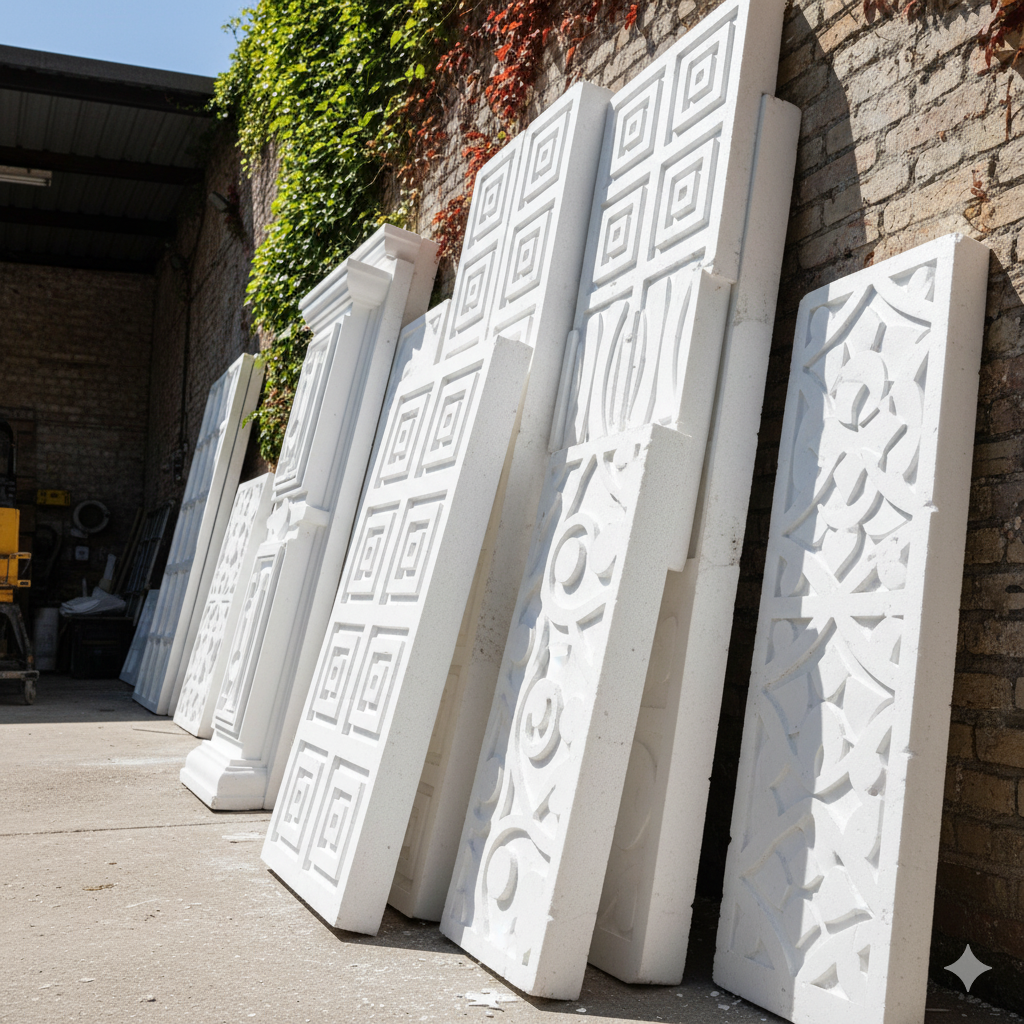

Architectural customization is not a feature added to the EPS/polyurea production process - it is inherent to the CNC milling technology on which the process is based.

A CNC mill operates from a three-dimensional digital model and reproduces any geometry the model defines, at the same per-unit cost regardless of profile complexity.

This creates major manufacturing advantages:

• No tooling penalty for unique geometry
• No minimum run size for custom profiles
• No dimensional constraint imposed by the manufacturing process itself

The practical range of geometric parameters is extensive.

Architectural orders - Doric, Ionic, Corinthian, Tuscan, and Composite - are reproduced from measured drawings or high-resolution reference photography to profile tolerances of ±3 mm.

Contemporary and proprietary profiles developed by the project architect are produced directly from CAD files without intermediate tooling.

Dimensional range extends from slender decorative elements to large-scale architectural components exceeding 900 mm in cross-section and 7.3 m in height, fabricated in interlocking segments for shipping and field assembly.

Surface treatments include:

• Smooth paint-ready finishes
• Faux stone textures
• Custom tactile profiles
• Applied decorative bands

All achievable within the same production system.

The wrap configuration - EPS/polyurea cladding fabricated to enclose an existing structural post or element - extends the application of Our Company products to renovation and restoration work where structural elements are already in place.

This single capability addresses a major gap in the competing product range:

• Fiberglass and PVC do not offer field-adaptable wrap systems
• Wood wraps are limited by available lumber dimensions
• Wood remains vulnerable to the same decay mechanisms as solid wood elements

Custom fiberglass profiles require mold fabrication at $2,000-$15,000 per profile with 3-8 week lead times.

Custom PVC requires extrusion die investment with comparable cost and timeline.

Custom stone or wood millwork involves manual production at hourly craft rates with high variability.

Our company custom product is priced and scheduled on the same basis as standard product.

Clients receive architectural elements that precisely match the design specification:

• No dimensional compromise
• No design simplification
• No cost penalty for doing the project right

The defining criterion for material selection in engineered construction is documentability: the ability to assign specific, defensible numerical values to material properties, use those values in structural calculations, and have the resulting design reviewed and approved by a licensed engineer and the Authority Having Jurisdiction.

Wood fails this criterion for decorative architectural elements because its properties vary by species, moisture content, grain orientation, and defect distribution.

Reference standards such as the NDS provide design value ranges, not precise values.

Custom fiberglass often fails because the fabricator cannot provide certified laminate property data for third-party engineering review.

PVC is classified as a non-structural thermoplastic and is not used in engineered resistance calculations for wind or gravity loads.

EPS/polyurea is the only system in this competitive set that can be fully characterized, parametrically adjusted, and submitted to engineering review with complete material documentation.

Our company system is engineered by parameter selection, not by default.

Type I: 1.0 lb/ft³, compressive resistance approximately 10 psi per ASTM C578

Type II: 2.0 lb/ft³, approximately 25 psi

Selection is based on service load requirements, exposure conditions, and substrate configuration.

Polyurea coating thickness is specified in the range of 30-60 mils based on:

• Impact exposure
• Moisture risk classification
• Durability requirements for the specific installation
• Anchorage engineering

Anchorage design is produced by the engineer of record, with fastener type, spacing, and embedment depth calculated for wind pressures of 120-180 PSF per the Florida Building Code, accounting for:

• CMU
• Cast concrete
• Wood framing
• Structural steel
• Element geometry
• Digital accuracy

CAD/CNC digital workflow ensures that fabricated geometry matches the engineered drawings to ±3 mm tolerance across every unit in the production run.

Our company technical documentation package includes:

• Shop drawings with all anchorage details and section cuts
• Complete material specification with ASTM standard references for every component
• Engineering calculations stamped by a Florida-licensed professional engineer when required
• Installation guidelines coordinated with AHJ submittal requirements

This package allows a structural engineer of record to defend the installation to any reviewing authority, and allows the owner to verify that the installed system performs to its calculated wind resistance rating specification.

Clients do not receive a product - they receive a fully engineered system with documented design basis, traceable material properties, and professional engineering accountability at every level of the specification.

Architectural aesthetics function as a measurable economic variable.

Studies of the U.S. commercial and residential real estate market consistently demonstrate that high-quality facade detailing:

• Increases perceived property value by 5-15%
• Reduces time-on-market for sale or lease transactions

For developers and property owners, the selection of architectural products that deliver premium visual quality is not a design preference - it is an investment allocation decision with a calculable return.

Our company products are specified for this reason by architects, developers, and restoration professionals who understand that facade quality is directly priced by the market.

Our company architectural products reproduce classical and contemporary architectural language at a level of precision that competing systems cannot achieve in production.

Capital and base projection geometry - the shadow-casting elements that establish architectural order and visual hierarchy - is milled to profile depths of 25-150 mm with edge sharpness and symmetry that extrusion, laminating, or handwork cannot consistently replicate at scale.

The surface is delivered:

• Smooth
• Pore-free
• Free of process artifacts
• No exposed glass fiber
• No resin streaking
• No tool marks
• No grain telegraphing through the finish

This surface quality is essential for:

• High-specular architectural paint systems
• Architectural uplighting
• Professional photography of the completed building

All of which depend on a defect-free substrate to perform as designed.

Proportion control - the ratio of element projections that defines architectural order - is maintained by digital modeling and CNC production, not by skilled tradesperson judgment.

This means that every unit in a project, regardless of production sequence or crew, matches the architect's specified proportions exactly.

Surface texture options extend from smooth through faux stone to fully custom tactile profiles, allowing the facade system to match the material language of the broader architectural composition.

Color specification is unlimited - any RAL, Munsell, or custom-mixed topcoat can be applied to the polyurea shell, providing exact palette coordination with adjacent facade materials.

Clients receive a finished architectural product that:

• Strengthens the developer's brand identity
• Supports premium pricing
• Supports higher occupancy rates for the completed asset
• Delivers long-term visual impact that does not degrade with age under normal service and maintenance conditions
