Premium Quality

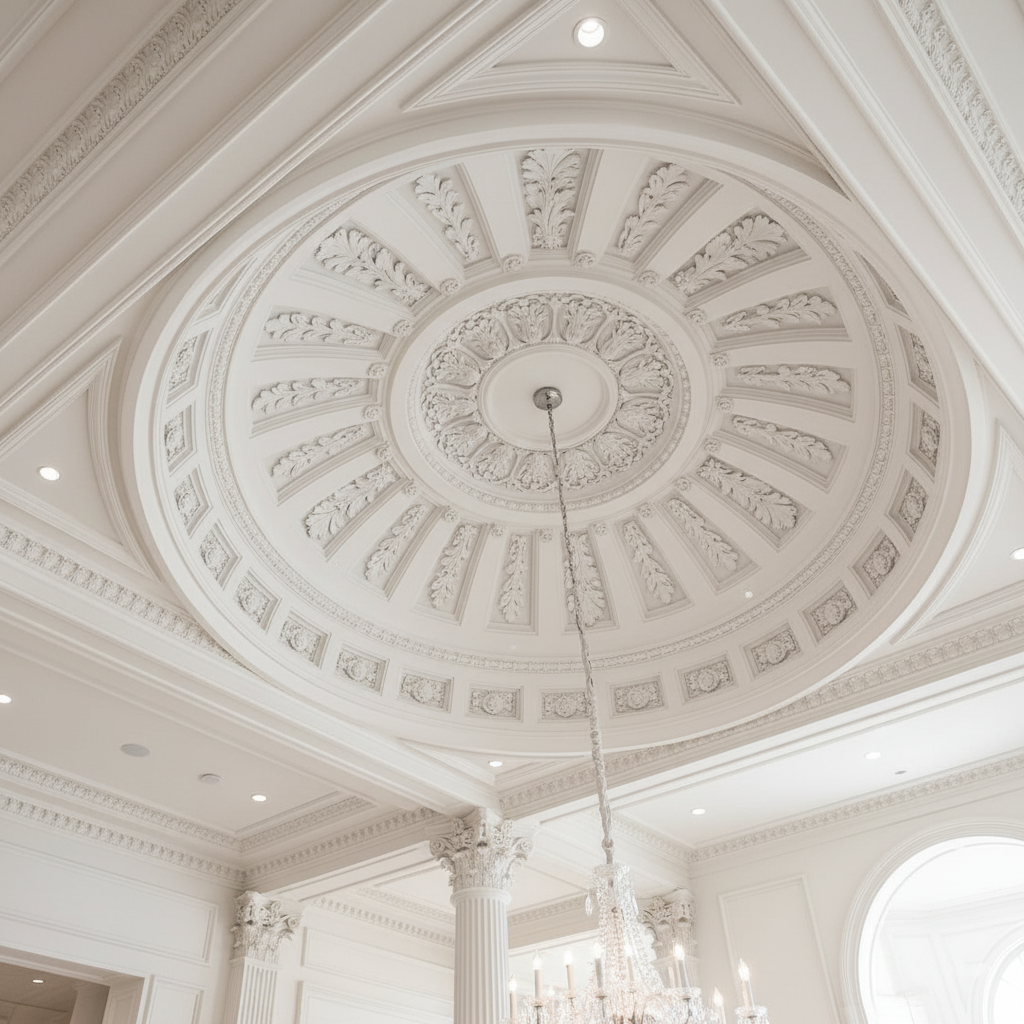

Ceiling Dome Design Systems

Where architecture meets art
25+ years
expirience
5000+
projects
Custom
designs

Who is This Solution For

From structural post to architectural statement. EPS architectural shapes without the weight, cost, or structural engineering. Built to spec, installed in hours.

×
System Architecture
EPS Core + Polyurea Shell vs. Conventional Materials SYSTEM ARCHITECTURE Integrated Multi-Layer System

Our company's architectural products are engineered as a fully integrated system composed of:

  • EPS Core - 1.0-2.0 lb/ft³ density
  • Polyurea Coating - two-component, 30-60 mils
  • Adhesion Primer
  • UV-Stable Finish Coat

This is not a sequence of separate layers. It is a closed engineered envelope where every component has a defined structural or protective role.

Functional Role of Each Layer EPS Core
  • Provides geometric form
  • Maintains dimensional stability
  • Reduces total weight
Polyurea Shell
  • Adds mechanical resistance
  • Provides chemical inertness
  • Blocks moisture intrusion
Primer Layer
  • Ensures bond integrity between materials
Finish Coat
  • Protects against UV exposure
  • Stabilizes final appearance
Why Conventional Materials Fall Short

WOOD

  • Vulnerable to moisture and decay
  • Requires constant maintenance
  • Can structurally degrade in 3-7 years in harsh climates
FIBERGLASS
  • Dependent on rigid molds
  • Limited to prefabricated shapes
  • Custom designs become expensive
PVC
  • Thermal expansion: 5-8 × 10⁻⁵/°C
  • Can warp, open joints, and lose dimensional accuracy under temperature swings
PRECAST CONCRETE / NATURAL STONE
  • Extremely heavy
  • Requires cranes and reinforced substrates
  • Slower, more complex installation process
Performance Advantages of Our Company
  • CNC PRECISION: ±3 mm across any profile
  • WEIGHT REDUCTION: 60-80% lighter than reinforced concrete
  • FASTER INSTALLATION: no heavy lifting equipment required
  • LOWER STRUCTURAL LOAD: reduced dead load on building envelope
  • WIND RESISTANCE: 120-180 PSF
  • CODE ENGINEERING: designed to Florida Building Code requirements
  • PERMIT READY: substrate-specific anchorage by licensed engineer
Final Result

Our company is not a decorative surface treatment.

It is a fully documented, engineered, permit-ready architectural system designed to move efficiently from fabrication to installation without rework.


Download PDF
Material Composition
Engineering Advantages of EPS/Polyurea Over Wood, PVC, and Fiberglass Engineered Composite System

Our company’s products are built on a composite material architecture that no single conventional material can replicate.

Core Structure
  • EPS TYPE I - 1.0 lb/ft³ density
  • EPS TYPE II - 2.0 lb/ft³ density
  • Classified under ASTM C578
  • Closed-cell EPS foam
  • Water absorption: BELOW 2% per ASTM C272
Why It Matters

This low absorption threshold is critical for facade elements exposed to:

  • Wind-driven rain
  • Condensation cycles
  • Sustained humidity
Protective Outer Shell

Far exceeds conventional paints and gelcoats in durability and service resistance.

Polyurea Coating
  • 30-60 mil thickness applied
  • 70-85 Shore D hardness
  • High impact resistance
  • High abrasion resistance
  • Chemical inertness
Technical Comparison with Competing Materials WOOD
  • Hygroscopic by molecular structure
  • Shrinks, warps, and separates under wet/dry cycles
  • Vulnerable to fungi and insects
  • Structural degradation in 3-10 years in warm humid climates
ENGINEERED LUMBER
  • Reduces variability
  • Still moisture-sensitive
  • Still biologically vulnerable
PVC
  • Elastic modulus loses stiffness above elevated temperatures
  • Creeps under self-weight and wind pressure
  • UV causes embrittlement and pigment breakdown in 10-15 years
FIBERGLASS
  • Often lacks third-party certified data in custom fabrication
  • Gelcoat damage allows hidden water intrusion
  • Internal delamination may remain invisible until failure
Failure Modes Eliminated by Our Company

Our company EPS + Polyurea removes all common substrate failures:

  • No cellulosic substrate to rot
  • No metal component to corrode
  • No thermoplastic matrix to creep
  • No laminate interface to delaminate
Long-Term Client Value Projected Service Life:

15-25+ years

Maintenance Interval:

10-15 years

Topcoat refinishing only.

Delivered Performance

ASTM-traceable performance data.

Based on documented standards, not marketing claims.

Final Statement

Our company is a measurable, testable, engineered exterior product system designed for long-term architectural performance.


Download PDF
Visual Presence
Architectural Expression as an Engineering Parameter

The visual authority of an architectural product is not a subjective attribute - it is a direct function of measurable geometric precision.

Profile relief depth of 25-150 mm generates shadow lines that establish legible architectural form at distances of 20-50 meters.

Symmetry held to ±3 mm, achieved through CNC milling, eliminates the bilateral distortions inherent in hand-carved wood or hand-laid fiberglass.

Products projection geometry - the proportional system that defines classical and contemporary architectural orders - reads as a quality signal to specifiers, occupants, and the broader market.

These are engineering parameters, and Our company products are manufactured to deliver them consistently across every unit produced.

Conventional materials cannot achieve this level of geometric control in service.

Extruded PVC profiles are constrained to planar cross-sections: three-dimensional transitions, multi-axis relief, and compound curves are physically inaccessible to the extrusion process.

Standard fiberglass in open-mold production exhibits surface irregularities - exposed glass fibers, resin-rich zones, and porosity - that are visually apparent at close inspection and degrade the premium quality signal.

Wood surfaces crack at the interface between growth rings as moisture content cycles seasonally; within the first year of outdoor exposure in a warm climate, sharp profile edges at elements begin to open, compromising the geometric integrity the architect designed into the project.

Our company’s products maintain original fabricated geometry throughout their service life

The EPS core does not absorb moisture, does not swell or shrink, and does not respond to thermal cycling with dimensional change.

The polyurea shell does not crack, peel, or delaminate under normal service loads.

The resulting surface - smooth, dimensionally stable, and uniform in reflectance - performs equally well under direct daylight, at night under architectural uplighting, and in professional photography.

Clients and end-users receive a facade element with a measurable contribution to property value: documented curb appeal, photogenic quality, and architectural identity that directly support occupancy rates, sale price premiums, and brand differentiation for the developer.


Download PDF
Durability
Systemic Service Performance of EPS/Polyurea in Demanding Climates

Warm, coastal, and high-humidity climates present a compound durability challenge for exterior architectural products: wind-driven rain, sustained UV exposure, biological growth, salt-laden air, and diurnal thermal cycling all operate simultaneously and without interruption for the full service life of the installation.

Any material selection that addresses only one or two of these mechanisms while remaining vulnerable to the others will produce premature failure.

Our company EPS/polyurea products are engineered to resist all active degradation mechanisms in parallel, not in sequence.

The polyurea coating at 30-60 mils functions as a continuous elastomeric barrier - no seams, no capillary channels, no porous zones through which moisture can migrate to the EPS core.

With Shore D hardness of 40-70, it resists pedestrian-level mechanical impacts (tool contact, equipment brushing, incidental loading) at a level unachievable with conventional latex paint or fiberglass gelcoat.

The EPS core is chemically inert: it does not provide a metabolizable carbon source for fungal or bacterial colonization, does not react with moisture, and does not contain ferrous components capable of corrosion.

When joints and terminations are properly detailed and sealed, the assembled system delivers high moisture resistance performance even under sustained wind-driven rain exposure.

COMPETING MATERIALS FAIL BY DOCUMENTED MECHANISMS.

Wood demands repainting every 3-5 years, chemical treatment against insect attack, and annual inspection for decay - cumulative 20-year maintenance expenditure routinely exceeds original installed cost.

PVC embrittles and discolors under UV in 7-10 years; thermal expansion mismatches at joints create pathways for water infiltration.

Fiberglass delaminates internally when the protective gelcoat is breached, a failure mode that is undetectable without non-destructive testing until visible surface collapse occurs.

Clients who specify our company products receive a warranted system service life of 15-25+ years, a predictable maintenance cycle of topcoat refinishing every 5-10 years, and resistance to biological, mechanical, UV, and moisture degradation that does not require the owner to manage multiple separate protection programs.


Download PDF
Compliance
EPS/Polyurea as a Fully Documentable System REGULATORY APPROVAL OF EXTERIOR ARCHITECTURAL ELEMENTS IS NOT A FORMALITY - it is a critical path item in the construction schedule.

A rejection from the Authority Having Jurisdiction (AHJ), a request for additional engineering data from the HOA, or a code-compliance question from the plan reviewer can delay a project by weeks, trigger contract penalty clauses, and require the design team to produce documentation under time pressure.

Selecting a material system with a complete, pre-existing compliance package is a direct risk mitigation strategy for the owner, developer, and general contractor.

ASTM C578classifies EPS foam by type and provides numerical values for density, compressive resistance, flexural strength, and thermal conductivity - the language of structural engineers and code reviewers.

ASTM C272quantifies water absorption of cellular plastic insulation, providing the test data required for moisture-related code provisions.

ASTM E84establishes surface burning characteristics for flame spread and smoke development, essential for commercial occupancies and interior code compliance.

The Florida Building Code wind load requirements of 120-180 PSF (depending on exposure category and geographic location) are addressed through engineered anchorage design produced by a licensed professional engineer - not generic installation guidelines.

This stands in direct contrast to unstandardized wood assemblies, which have no unified certification system for decorative architectural elements, and to custom fiberglass products that frequently lack third-party material certification entirely.

Our company compliance package includes:
  • Shop drawings with anchorage details
  • Material specifications with ASTM references
  • Engineering calculations for wind load resistance
  • Safety data sheets for all coating components

Everything an AHJ, HOA, or municipal permitting office requires in a single submission.

Clients receive a product that passes code review on the first submission, eliminating the cost of re-engineering, resubmission fees, schedule delays, and legal exposure associated with non-compliant installations.


Download PDF
Cost Efficiency
Total Cost of Ownership Advantage of EPS/Polyurea Over Competing Systems TOTAL COST OF OWNERSHIP AS THE TRUE ECONOMIC MEASURE

The economic case for any architectural material system cannot be made on unit purchase price alone.

The total cost of ownership (TCO) integrates:

  • Procurement
  • Installation labor
  • Equipment rental
  • Freight handling
  • Routine maintenance
  • Unplanned repair
  • End-of-life replacement

This applies over the full service life - a horizon of 15-25 years for exterior facade elements.

On this complete accounting basis, our company’s EPS/polyurea products consistently outperform every competing material category, including wood, PVC, fiberglass, and precast concrete.

INSTALLATION AND FREIGHT ECONOMICS

Installation economics are driven by weight.

Weight Advantage

At 60-80% less mass than reinforced concrete and natural stone, our company products require:

  • No crane equipment
  • No reinforced substructure
  • No extended cure periods
Labor Efficiency

A crew of 2-4 workers installs a typical product set in 4-8 hours, compared with multi-day schedules for masonry piers, precast element assemblies, or cast-in-place concrete.

Freight Efficiency

Freight economics follow directly: a given truck load carries significantly more EPS product by volume and by count than any masonry or stone alternative, reducing per-unit delivered cost.

CNC Production Efficiency

CNC fabrication eliminates hand-finishing labor inherent to wood and stone production and produces consistent output with a near-zero defect rate:

  • No rework
  • No field modification
  • No waste from material variability
CUSTOM GEOMETRY ECONOMICS

Custom geometry economics are fundamentally different for EPS/polyurea versus competing systems.

Competing Systems

Fiberglass custom profiles require fabrication of molds and counter-molds at $2,000-$15,000 per profile, with lead times of 3-8 weeks.

PVC custom extrusion dies carry comparable tooling costs.

Wood custom millwork requires specialized equipment, skilled labor, and extended production time.

Our Company Advantage

With our company, any geometry is milled directly from a digital model at no tooling premium - a single profile or a full production run carries the same per-unit fabrication cost structure.

LONG-TERM MAINTENANCE SAVINGS

Long-term maintenance includes major advantages:

  • No rot means no chemical treatment programs
  • No pest control contracts
  • No emergency replacement of decayed elements
  • Topcoat refinishing every 5-10 years is the only planned maintenance expenditure
  • Individual damaged components can be replaced in isolation without disturbing adjacent elements
FINAL ECONOMIC RESULT

On a 20-year TCO basis, our company delivers the lowest total cost of any equivalent architectural product category.


Download PDF
Speed of Installation
EPS/Polyurea as a Construction Schedule Compression Tool IN COMMERCIAL CONSTRUCTION, SCHEDULE COMPRESSION IS A DIRECT REVENUE STRATEGY.

Every day of accelerated project delivery reduces financing carrying costs, advances the revenue start date for the completed asset, and reduces general conditions expenditure - site supervision, temporary facilities, and overhead.

Facade element installation is frequently a schedule-critical activity: it gates exterior envelope closure, painting, and final inspections.

The material system selected for architectural products therefore has a direct and quantifiable impact on project economics, not just on installed appearance.

OUR COMPANY PREFABRICATED PRODUCTS ARRIVE ON SITE FULLY PROCESSED: EPS-SHAPED, POLYUREA-COATED, PRIMED, AND FINISH-COATED.

There is no formwork to build, no concrete to pour, no cure period to observe, no wet-trade sequencing to coordinate.

Fast-cure polyurea coating systems reduce factory finishing cycle time to hours per production run - a throughput rate that fiberglass laminating and wood finishing operations cannot match.

A typical installation of a complete product set requires a crew of 2-4 workers and 4-8 hours of on-site labor, versus multi-day or multi-week schedules for masonry piers, precast assemblies, or site-built wood elements.

The dry-installation method eliminates weather-dependent cure windows that routinely extend wet-trade schedules in high-humidity and rain-prone environments.

CNC FABRICATION PROVIDES AN ADDITIONAL SCHEDULE ADVANTAGE AT THE DESIGN STAGE.

Custom profile geometry is produced by modifying a digital model and initiating a milling run - a process measured in hours, not the weeks required to fabricate new fiberglass molds or commission custom extrusion tooling.

When design changes occur late in the project timeline, Our Company can respond without a schedule penalty.

Prefabrication also reduces site congestion: fewer trades, less equipment, and a compressed installation window mean that other parallel activities on the critical path are not disrupted.

Clients receive a measurable construction schedule advantage, a documented reduction in general conditions cost during facade installation, and earlier building turnover - all direct contributions to project-level return on investment.


Download PDF
Customization
EPS/Polyurea Delivers Design Freedom Unavailable in Competing Systems CUSTOMIZATION IS BUILT INTO THE PROCESS

Architectural customization is not a feature added to the EPS/polyurea production process - it is inherent to the CNC milling technology on which the process is based.

A CNC mill operates from a three-dimensional digital model and reproduces any geometry the model defines, at the same per-unit cost regardless of profile complexity.

This creates major manufacturing advantages:

  • No tooling penalty for unique geometry
  • No minimum run size for custom profiles
  • No dimensional constraint imposed by the manufacturing process itself
WIDE GEOMETRIC AND SURFACE CAPABILITIES

The practical range of geometric parameters is extensive.

Architectural orders - Doric, Ionic, Corinthian, Tuscan, and Composite - are reproduced from measured drawings or high-resolution reference photography to profile tolerances of ±3 mm.

Contemporary and proprietary profiles developed by the project architect are produced directly from CAD files without intermediate tooling.

DIMENSIONAL RANGE

Dimensional range extends from slender decorative elements to large-scale architectural components exceeding 900 mm in cross-section and 7.3 m in height, fabricated in interlocking segments for shipping and field assembly.

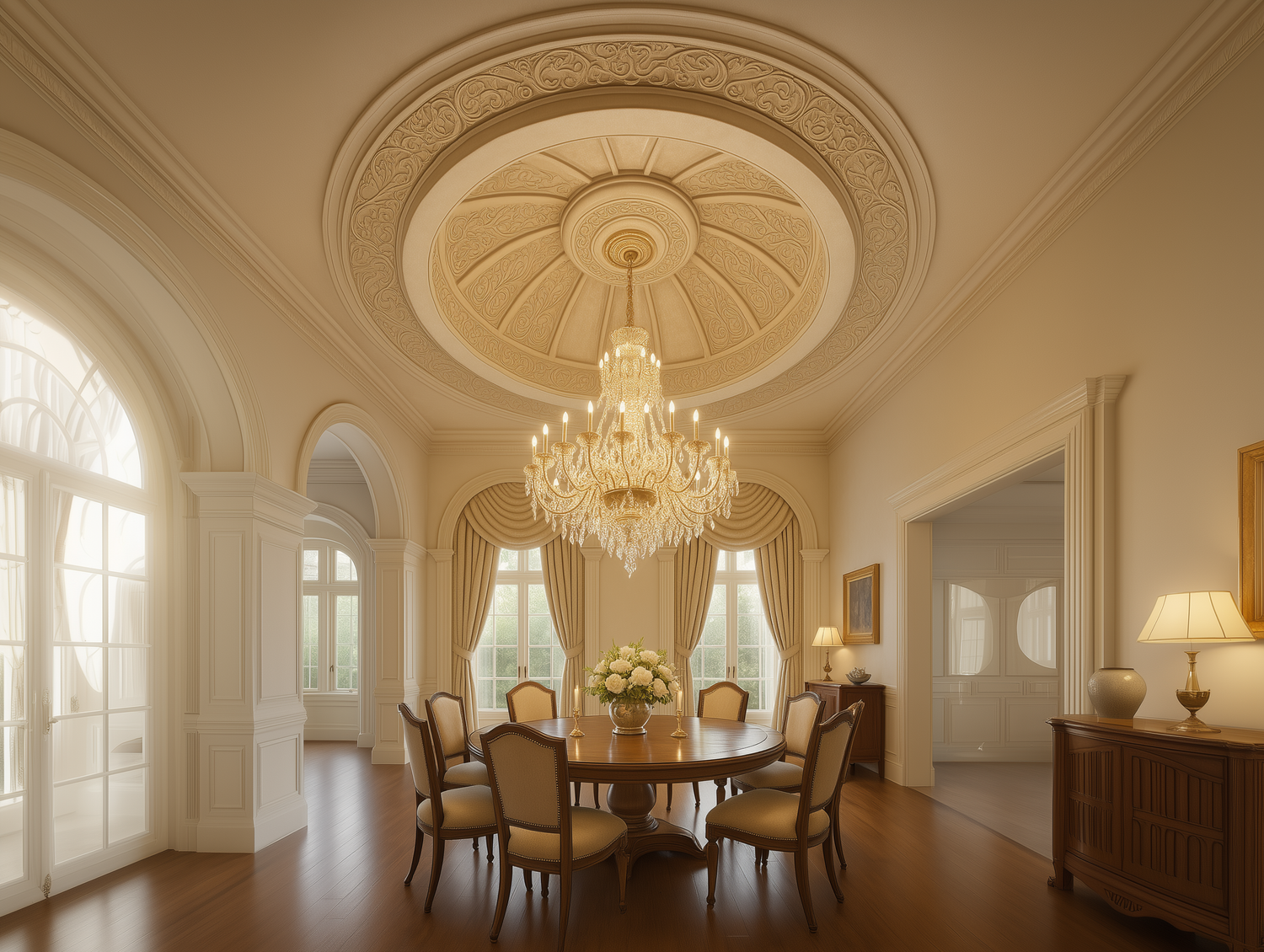

SURFACE TREATMENTS

Surface treatments include:

  • Smooth paint-ready finishes
  • Faux stone textures
  • Custom tactile profiles
  • Applied decorative bands

All achievable within the same production system.

RENOVATION AND WRAP APPLICATIONS

The wrap configuration - EPS/polyurea cladding fabricated to enclose an existing structural post or element - extends the application of Our Company products to renovation and restoration work where structural elements are already in place.

This single capability addresses a major gap in the competing product range:

  • Fiberglass and PVC do not offer field-adaptable wrap systems
  • Wood wraps are limited by available lumber dimensions
  • Wood remains vulnerable to the same decay mechanisms as solid wood elements
DIRECT COMPETITIVE COMPARISON

Custom fiberglass profiles require mold fabrication at $2,000-$15,000 per profile with 3-8 week lead times.

Custom PVC requires extrusion die investment with comparable cost and timeline.

Custom stone or wood millwork involves manual production at hourly craft rates with high variability.

Our company custom product is priced and scheduled on the same basis as standard product.

FINAL CLIENT BENEFIT

Clients receive architectural elements that precisely match the design specification:

  • No dimensional compromise
  • No design simplification
  • No cost penalty for doing the project right

Download PDF
Engineering
EPS/Polyurea as a Fully Designable Technical System Documentability as the Core Engineering Criterion

The defining criterion for material selection in engineered construction is documentability: the ability to assign specific, defensible numerical values to material properties, use those values in structural calculations, and have the resulting design reviewed and approved by a licensed engineer and the Authority Having Jurisdiction.

Why Competing Materials Fall Short

Wood fails this criterion for decorative architectural elements because its properties vary by species, moisture content, grain orientation, and defect distribution.

Reference standards such as the NDS provide design value ranges, not precise values.

Custom fiberglass often fails because the fabricator cannot provide certified laminate property data for third-party engineering review.

PVC is classified as a non-structural thermoplastic and is not used in engineered resistance calculations for wind or gravity loads.

EPS/polyurea is the only system in this competitive set that can be fully characterized, parametrically adjusted, and submitted to engineering review with complete material documentation.

PARAMETER-BASED ENGINEERING DESIGN

Our company system is engineered by parameter selection, not by default.

EPS Core Selection

Type I: 1.0 lb/ft³, compressive resistance approximately 10 psi per ASTM C578

Type II: 2.0 lb/ft³, approximately 25 psi

Selection is based on service load requirements, exposure conditions, and substrate configuration.

POLYUREA SPECIFICATION

Polyurea coating thickness is specified in the range of 30-60 mils based on:

  • Impact exposure
  • Moisture risk classification
  • Durability requirements for the specific installation
  • Anchorage engineering
Anchorage Engineering

Anchorage design is produced by the engineer of record, with fastener type, spacing, and embedment depth calculated for wind pressures of 120-180 PSF per the Florida Building Code, accounting for:

  • CMU
  • Cast concrete
  • Wood framing
  • Structural steel
  • Element geometry
  • Digital accuracy

CAD/CNC digital workflow ensures that fabricated geometry matches the engineered drawings to ±3 mm tolerance across every unit in the production run.

COMPLETE DOCUMENTATION PACKAGE

Our company technical documentation package includes:

  • Shop drawings with all anchorage details and section cuts
  • Complete material specification with ASTM standard references for every component
  • Engineering calculations stamped by a Florida-licensed professional engineer when required
  • Installation guidelines coordinated with AHJ submittal requirements
CLIENT AND APPROVAL BENEFITS

This package allows a structural engineer of record to defend the installation to any reviewing authority, and allows the owner to verify that the installed system performs to its calculated wind resistance rating specification.

Clients do not receive a product - they receive a fully engineered system with documented design basis, traceable material properties, and professional engineering accountability at every level of the specification.


Download PDF
Aesthetics
EPS/Polyurea as a Premium Architectural Product AESTHETICS AS AN ECONOMIC VARIABLE

Architectural aesthetics function as a measurable economic variable.

Studies of the U.S. commercial and residential real estate market consistently demonstrate that high-quality facade detailing:

  • Increases perceived property value by 5-15%
  • Reduces time-on-market for sale or lease transactions

For developers and property owners, the selection of architectural products that deliver premium visual quality is not a design preference - it is an investment allocation decision with a calculable return.

Our company products are specified for this reason by architects, developers, and restoration professionals who understand that facade quality is directly priced by the market.

PRECISION ARCHITECTURAL REPRODUCTION

Our company architectural products reproduce classical and contemporary architectural language at a level of precision that competing systems cannot achieve in production.

Geometry Quality

Capital and base projection geometry - the shadow-casting elements that establish architectural order and visual hierarchy - is milled to profile depths of 25-150 mm with edge sharpness and symmetry that extrusion, laminating, or handwork cannot consistently replicate at scale.

Surface Quality

The surface is delivered:

  • Smooth
  • Pore-free
  • Free of process artifacts
  • No exposed glass fiber
  • No resin streaking
  • No tool marks
  • No grain telegraphing through the finish

This surface quality is essential for:

  • High-specular architectural paint systems
  • Architectural uplighting
  • Professional photography of the completed building

All of which depend on a defect-free substrate to perform as designed.

PROPORTION AND DESIGN CONSISTENCY

Proportion control - the ratio of element projections that defines architectural order - is maintained by digital modeling and CNC production, not by skilled tradesperson judgment.

This means that every unit in a project, regardless of production sequence or crew, matches the architect's specified proportions exactly.

SURFACE AND COLOR FLEXIBILITY

Surface texture options extend from smooth through faux stone to fully custom tactile profiles, allowing the facade system to match the material language of the broader architectural composition.

Color specification is unlimited - any RAL, Munsell, or custom-mixed topcoat can be applied to the polyurea shell, providing exact palette coordination with adjacent facade materials.

FINAL MARKET BENEFIT

Clients receive a finished architectural product that:

  • Strengthens the developer's brand identity
  • Supports premium pricing
  • Supports higher occupancy rates for the completed asset
  • Delivers long-term visual impact that does not degrade with age under normal service and maintenance conditions

Download PDF

Technical specification

Ceiling Dome Design Systems

Ceiling Dome Design Systems 1

Ceiling Dome Design Systems 1

Ceiling Dome Design Systems 2

Ceiling Dome Design Systems 2

Ceiling Dome Design Systems 3

Ceiling Dome Design Systems 3

Ceiling Dome Design Systems 4

Ceiling Dome Design Systems 4

Ceiling Dome Design Systems 5

Ceiling Dome Design Systems 5

Ceiling Dome Design Systems 6

Ceiling Dome Design Systems 6

Ceiling Dome Design Systems 7

Ceiling Dome Design Systems 7

Ceiling Dome Design Systems 8

Ceiling Dome Design Systems 8

Height (H), in Length (L), in Diameter (D), in
48" 48" 48"
48" 60" 60"
60" 48" 48"
60" 60" 60"
72" 60" 60"
72" 72" 72"
98" 72" 72"
98" 98" 98"
120" 98" 98"
120" 120" 120"
144" 120" 120"
144" 144" 144"
Length (L), in Depth (D), in Height (H), in
24" 4" 65"
26" 4" 65"
28" 4" 65"
32" 4 1/2" 70"
34" 4 1/2" 70"
36" 4 1/2" 70"
48" 5" 90"
52" 5" 90"
56" 5" 90"
60" 5 1/2" 105"
64" 5 1/2" 105"
68" 5 1/2" 105"
Width (W), foot Height (H), in Depth (D), in
10' 8" 7"
10' 10" 7"
12' 8" 8"
12' 10" 8"
14' 8" 8 1/2"
14' 10" 8 1/2"
16' 8" 9"
16' 10" 9"
18' 12" 9 1/2"
20' 12" 9 1/2"
24' 12" 10"
32' 12" 10"

Door Surround-Door 016

Door Surround-Door 016

Door Surround-Door 014

Door Surround-Door 014

Door Surround-Door 011

Door Surround-Door 011

Door Surround-Door 002

Door Surround-Door 002

Width (W), in Height (H), in Depth (D), in
48" 72" 7"
48" 80" 7"
54" 72" 8"
54" 80" 8"
60" 80" 8 1/2"
60" 82" 8 1/2"
72" 82" 9"
72" 84" 9"
110" 82" 9 1/2"
110" 84" 9 1/2"
120" 82" 10"
120" 84" 10"
Length (L), in Depth (D), in Height (H), in
24" 4" 65"
26" 4" 65"
28" 4" 65"
32" 4 1/2" 70"
34" 4 1/2" 70"
36" 4 1/2" 70"
48" 5" 90"
52" 5" 90"
56" 5" 90"
60" 5 1/2" 105"
64" 5 1/2" 105"
68" 5 1/2" 105"
Width (W), foot Height (H), in Depth (D), in
10' 8" 7"
10' 10" 7"
12' 8" 8"
12' 10" 8"
14' 8" 8 1/2"
14' 10" 8 1/2"
16' 8" 9"
16' 10" 9"
18' 12" 9 1/2"
20' 12" 9 1/2"
24' 12" 10"
32' 12" 10"

Door Surround-Door 036

Door Surround-Door 036

Door Surround-Door 042

Door Surround-Door 042

Door Surround-Door 025

Door Surround-Door 025

Door Surround-Door 023

Door Surround-Door 023

Width (W), in Height (H), in Depth (D), in
48" 72" 7"
48" 80" 7"
54" 72" 8"
54" 80" 8"
60" 80" 8 1/2"
60" 82" 8 1/2"
72" 82" 9"
72" 84" 9"
110" 82" 9 1/2"
110" 84" 9 1/2"
120" 82" 10"
120" 84" 10"
Length (L), in Depth (D), in Height (H), in
24" 4" 65"
26" 4" 65"
28" 4" 65"
32" 4 1/2" 70"
34" 4 1/2" 70"
36" 4 1/2" 70"
48" 5" 90"
52" 5" 90"
56" 5" 90"
60" 5 1/2" 105"
64" 5 1/2" 105"
68" 5 1/2" 105"
Width (W), foot Height (H), in Depth (D), in
10' 8" 7"
10' 10" 7"
12' 8" 8"
12' 10" 8"
14' 8" 8 1/2"
14' 10" 8 1/2"
16' 8" 9"
16' 10" 9"
18' 12" 9 1/2"
20' 12" 9 1/2"
24' 12" 10"
32' 12" 10"

Our material vs Competitors

Property Our Material (EPS) Wood Concrete Polyurethane Fiberglass
Weight Very lightweight Medium Very heavy Light Light
Thermal Insulation Excellent Moderate Poor Excellent Good
Moisture Resistance High (does not absorb water) Low (absorbs moisture) Medium High Medium
Durability Long-lasting, stable Can rot or warp Very durable Durable Fragile over time
Fire Behavior Melts under high heat Burns Fire-resistant Flammable (treated variants available) Non-combustible
Ease of Installation Easy, fast, low labor cost Moderate Difficult, labor-intensive Moderate Requires protection gear
Customization Highly customizable shapes & sizes Limited Very limited Moderate Limited
Cost Affordable Medium to high High High Medium

We offer 9 finish types. For custom color, we have mixes that allow us to make arhitectural products in almost any color.

All textures and colors are fully customizable for each individual project, ensuring complete flexibility in design and appearance.

Each our decorative architectural foam product is unique. We don’t “print” identical beams — we craft them as individual architectural pieces.

Discuss my project
Color palette

Why choose us

Value / Service Our company Competitors
Free Design Support Included in every project Usually not available
Product Customization Fully customized solutions Limited options
Engineering Consultation Direct access to engineers Rare or paid
Unique Prototype Development Yes, tailored prototypes Not offered
Personal Project Manager Dedicated manager for each client Not standard
Speed of Production Fast turnaround Slower processes
Client Support Ongoing support at all stages Limited after-sales support
Flexibility Tailored to any client requirements Standard solutions only

How it Works

Step 1. Adaptation
If you have a finished project, we adapt it for production and installation, preserving every detail.

Step 2. Define your vision
Capture a clear picture of the client’s ideas before moving to design and rendering.

Step 3. Plan specifications
Outline measurements, production methods, and finalize materials, components, and finishes.

Step 4. Installation
Our team ensures precise setup, perfectly aligning your custom surround with the space.

Step 1. Define your vision
The aim of this step is to capture a precise picture of the client’s vision before proceeding to technical design and visual rendering.

Step 2. Plan specifications
During this phase, we define the specifications, production methods, and measurements, while finalizing the look by selecting materials, elements, and finishes.

Step 3. Installation
Once fabrication is complete, our installation team will handle every aspect of the setup, ensuring your custom surround is fitted with accuracy and seamlessly integrated into your space.

Let's bring your project to life!

Areas We Serve

Areas We Serve

We proudly serve clients across the United States, including major cities such as

· Jacksonville · Orlando · Miami · Atlanta · Dallas · Los Angeles · New York City · Chicago · Washington · San Francisco ·

Free Quote Request

Our Partners

Voices of our clients

I highly recommend the services of Royal Foam because they are always consistent with their quality of 3D letterings and other products.

Samuel Ridge

Thank You Royal Foam for providing me with the gorgeously designed monument sign I had ordered for my newly opened company.

Danial Bryan

After installing an arch from Royal Foam not only the look has improved but also my home has become a lot more spacious. I suggest and thank Royal Foam. I will contact again to Royal foam for my new arch work at my home. Designs are very good and finishing is also good.

Amy Corey

I had ordered plastic letters to put up in front of my Company and I’m thanks to the quality, come rain or sun, they shine like new always. Thank you for such good products Royal Foam.

Origin Teak

Let's bring your project to life!

Frequently Asked Questions

+
Yes. We’ve seen it ourselves. A client in a modest apartment doubted it, but after installation she said: “My living room feels taller by at least a foot.” It’s perspective — but it feels like magic.
+
Not at all. We’ve built contemporary overhead curve ceiling style features in compact condos. One couple told us their one-bedroom suddenly felt like a boutique hotel suite.
+
Foam rounded ceilings are durable. With proper finishing, they can last decades. One of our early residential dome ceiling design projects is over 12 years old and still looks fresh.
+
Of course. From sleek modern to a custom ceiling dome design look, the options are wide open. One teenager even asked for a starry galaxy — and we loved making it happen.
+
Most likely. Realtors often tell us rounded ceilings become selling points. Buyers remember a unique ceiling long after they forget the countertops.
+
Less than most people expect. One client laughed: “We spent more on wood floors than the overhead curve, and yet everyone notices the ceiling first.”
+
Usually just a few days. Even a lobby dome ceiling design in a hotel can be done within a week.
+
Not at all. A little dusting now and then. Repainting after ten years if you want a refresh. That’s it.
+
Absolutely. A new contemporary dome ceiling style pairs perfectly with clean lines and LEDs. For traditional homes, we lean toward plaster-style finishes. It’s flexible.
+
Depends on lifestyle. Chandeliers bring drama. LEDs bring calm. Mix them for flexibility. One family told us: “We barely use lamps anymore — the rounded ceiling lighting does everything.”
+
Yes. Many clients begin with a living room dome ceiling design. Later they add rounded ceilings in entries or bedrooms once they experience the effect.
+
We think so, and so do our clients. One family said: “We sit under the rounded ceiling with coffee every morning just because it feels good.” That’s design doing its quiet, powerful work.

Blog Posts

Custom Ceiling Dome Designs

Interior design is never just about paint colors or furniture sets. It’s about emotion, atmosphere, and the way a space makes you feel when you walk into it. Few architectural details deliver that emotional punch quite like a ceiling dome. With just one curve, a dome instantly changes the perception of a room — it lifts the ceiling visually, makes the space feel more open, and gives it character.

ceiling dome desighn

We’ve watched this moment happen in real life dozens of times. A family walks into their living room after renovation, looks up, and falls silent. Then the father laughs, saying it feels like the house just grew taller. The kids lie down on the wood floors to stare at the curve, and the mother whispers: “I feel calmer already.” Ultimately, these moments — little gasps of joy — are why we do what we do.

For us, the dome is not a gimmick or a trend. Instead, it’s the perfect intersection of design and psychology, a way to turn a plain room into a place you want to spend more time in.

The Growing Popularity of Dome Ceiling Design

Why are domes experiencing a comeback right now? Simply put, people want more than neutral, “builder-basic” interiors. They want personality. A flat ceiling does its job — however, a dome becomes the focal point of the home.

We’ve designed ceiling dome features in apartments, single-family houses, hotels, and even modern offices. One executive told us that his boardroom overhead curve made meetings “less stiff, more inspiring.” Another client, a young couple, placed an arching ceiling in their entryway, saying they wanted guests to “feel the welcome right away.” In both cases, the vault didn’t just look good — it changed how people used the space.

The real game-changer has been modern foam technology. Lightweight, precise, and affordable, it allows us to create arching ceilings without the structural headaches of old. Consequently, residential dome ceiling design is taking off. What once was a luxury is now an attainable upgrade.

And we’ve noticed a cultural shift: more homeowners are finally investing in ceilings as a design element. Kitchens and bathrooms still matter, but now, ceilings are becoming the new “showstopper.” After all, the ceiling is the largest surface in a room — why leave it flat and forgettable?

The History of Dome Ceiling Design: From Ancient Grandeur to Modern Elegance

Whenever we explain overhead curves to clients, we like to share a little history. Because when you put an overhead curve above your domestic space, you’re joining a tradition that goes back thousands of years.

The Romans gave us the Pantheon, still one of the greatest vaults ever built. Standing inside, you feel both small and infinite. We felt that same awe when we visited — the light pouring through the oculus, the perfect proportions. For that reason, arching ceilings quickly became symbols of the heavens.

Centuries later, the Renaissance brought masterpieces like Brunelleschi’s arching ceiling in Florence and Michelangelo’s at St. Peter’s Basilica. They weren’t just roofs — they were architectural prayers in stone. Many of our clients say: “I want just a touch of that feeling at home.” And with today’s foam technology, surprisingly, we can give them exactly that.

In Baroque palaces, rounded ceilings became painted theaters of the sky. Frescoes, gilded trim, elaborate reliefs — a plaster ceiling dome design was the ultimate symbol of sophistication. We once recreated a simplified version in a private ballroom. The owners said their guests couldn’t stop looking up during dinner parties.

Across faiths, rounded ceilings became sacred. In mosques, they echo prayers. In churches, they symbolize heaven. And even today, homeowners tell us their overhead curves feel calming or even spiritual. One woman said: “I don’t know why, but it feels like peace lives up there.”

By the 18th and 19th centuries, domes moved into private estates. Today, residential dome ceiling design lets homeowners enjoy the same luxury — scaled appropriately for everyday living.

What excites us most is blending that history with modern life. A rounded ceiling in a family home doesn’t feel like a museum piece. On the contrary, done right, it feels natural, timeless, and surprisingly cozy.

Types of Dome Ceiling Design

Rounded ceilings come in many forms, and each one tells a slightly different story. Over the years we’ve built them all, and here’s what we’ve learned.

Classic Dome Ceiling Design

Symmetry, proportion, balance — a classic dome ceiling design feels timeless. We installed one above a dining room table. The family later told us every dinner now feels ceremonial.

Classic doesn’t have to mean heavy. Soft finishes and pale colors keep it serene. Ultimately, a classic rounded ceiling becomes the architectural equivalent of a well-tailored suit.

Modern Dome Ceiling Design

Minimal, smooth, versatile. A contemporary overhead arch ceiling style works beautifully in both small and large spaces. One couple in a downtown apartment said: “It’s the only decorative feature we need.”

Moreover, lighting is the secret here — hidden LEDs, clean geometry, matte finishes.

Custom Ceiling Dome Design

Foam domes can mimic plaster with extraordinary elegance. A townhouse client asked us for one above her hallway. Later she said: “It looks like Paris.”

Pair this look with warm whites and soft metallic accents for a refined effect.

Lobby Dome Ceiling Design

A lobby dome ceiling design sets the tone for any building. In one boutique hotel, the ceiling vault became the most photographed spot. As a result, it basically paid for itself in marketing.

Residential Dome Ceiling Design

In private homes, overhead arches add comfort and beauty. A stairwell vault made one homeowner say: “I never thought walking upstairs could feel luxurious.” That’s what curves do — they elevate daily moments.

Living Room Dome Ceiling Design

A living room dome ceiling design becomes the anchor of family life. Furniture naturally centers beneath it. Lighting follows. Consequently, conversations feel more grounded and connected.

New Contemporary Dome Ceiling Style

This style is bold and sometimes futuristic. Hidden RGB lighting, pure geometry — it feels creative and fresh. In homes, this approach works beautifully for media rooms or studios.

Applications of Dome Ceiling Design

We often joke: there’s no wrong place for a vaulted dome. We’ve seen them transform nearly every type of interior.

Homes. Apartments. Hotels. Spas. Event venues. Each benefits differently. One of our favorite projects was a wedding hall. The owner told us: “Brides choose this venue because of the ceiling.” In other words, a single architectural element became the heart of his business.

Concave ceilings also shine in transitional zones. Place one above the threshold from hallway to living space, and guests instinctively pause, look up, and feel welcomed.

Foam as the Ideal Material

Clients sometimes ask: “Isn’t a concave ceiling too heavy or complex?” We love answering: “Not at all. Foam makes domes possible for everyone.”

Foam is strong but light, easy to shape, resistant to cracks and moisture. Additionally, installation is fast — days, not weeks.

One client laughed after seeing her finished vault: “This was easier than hanging new drapes.” That ease — minimal hassle, maximum impact — is why foam is unbeatable.

From our perspective as installers, foam offers consistency, sharper lines, and impressive long-term stability.

Finishing Options for Foam Domes

A foam concave ceiling is a blank canvas. The possibilities are endless:

  • Smooth, painted surfaces

  • Textured plaster-mimicking finishes

  • Metallic coatings

  • Faux travertine

  • Warm wood tones

  • Custom palettes

One of our favorites was a champagne-gold living room dome. By day it was subtle; by night it glowed. Indeed, the owners said: “It feels alive — different every evening.”

Our advice: consider your entire palette so the dome ties the whole room together beautifully.

Lighting and Dome Ceiling Design

Lighting is what makes a rounded ceiling sing. Without it, the curves hide. With it, the ceiling comes alive.

We’ve installed chandeliers for drama, hidden LEDs for halos, and even RGB for families who love fun. A living room dome ceiling design we built could shift from “romantic dinner” to “kids’ dance party.” Consequently, the dome became part of the entertainment system.

A helpful guideline: aim for three presets — everyday neutral, cozy evening, and bright event.

Installation Benefits

Foam domes are refreshingly easy. Prefabricated pieces, no structural reinforcement, quick assembly. Most projects finish in under a week.

But what matters more is peace of mind. One homeowner said: “I expected chaos. Instead, I got beauty in three days.” As a result, they now recommend domes to everyone.

Behind the scenes, we pre-fit parts and test finishes long before installation, ensuring your home stays clean and calm.

Psychological Impact of Dome Ceilings

Overhead arches don’t just change visuals — they change mood. A dome pulls your eyes upward, expands your breathing, and feels uplifting.

Clients tell us the room feels calmer, arguments softer, evenings more peaceful. Ultimately, architecture shapes emotion.

A dome doesn’t shout. Instead, it quietly reshapes how you experience the room.

Conclusion

Ceiling dome design is more than architecture — it’s history, psychology, and modern comfort all at once. From lobby dome ceiling design in hotels to living room dome ceiling design in family homes, overhead curves transform spaces into unforgettable experiences.

We’ve watched countless families light up when they see their new dome. They tell us: “It feels richer, warmer, more us.” And ultimately, that’s why we do this work.

Because when the lights switch on and everyone looks up — there’s a pause, then a smile.
And that smile is when we know we got it right.
